CINCON電源模塊中鐵路解決方案DC-DC轉換器

發布時間：2020-10-15 17:01:39     瀏覽：7422

CINCON公司提供范圍廣泛的EN50155兼容的8W-600W的DC-DC變換器。CINCON變換器是專門為普通鐵路應用而設計的，標稱電壓為24V、36V、48V、72V、96V、110 V，還適用于分布式電源結構、電信、電池操作設備和工業應用。

此外，CINCON還提供更多由EN50155設計的產品。

CINCON電源模塊是一家向通信、計算機、工業、醫療、消費和照明市場提供開關電源轉換產品的全球供應商。設計和制造行業標準、DC-DC轉換器、交流-直流電源和符合RoHS要求的LED電源。

目前，CINCON電源模塊的產品包括3000多個標準產品，包括1W到750 W的單輸出和多輸出DC-DC變換器，5W到150 W單輸出和多輸出交流適配器，5W到700 W開放式交直流電源和LED電源。15W至150 W。

深圳市立維創展科技是CINCON電源模塊的經銷商，提供CINCON電源模塊的DC-DC轉換器、AC-DC電源、LED電源等，產品原裝進口，質量保障，極具價格優勢，歡迎咨詢。

詳情了解CINCON電源請點擊：http://m.lunliu2.cn

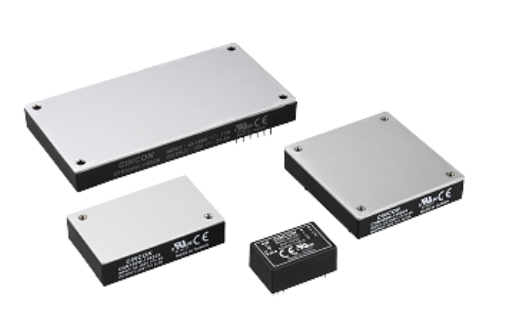

 CINCON電源模塊中鐵路解決方案DC-DC轉換器

2:1 Input Range

Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)

CQB100-110S

100W

66~160V

3.3V, 5V, 12V, 24V

2250Vdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant

2.28×1.45x0.50
(Quarter Brick)

CHB100-110S

100W

66~160V

12V, 15V, 24V, 48V

3KVac Isolation
EN45545-2
EN50155 Compliant

2.28×2.40x0.50
(Half Brick)

CHB150-110S

150W

66~160V

5V, 12V, 24V

2250Vdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant

2.28×2.40x0.50
(Half Brick)

4:1 Input Range

Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)

EC3AW

3W

9~36V, 18~72V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

500/1.5K/3KVdc Isolation

1.25x0.80x0.40(DIP24)
1.25×0.80x0.45(SMD24)

EC3SAW

3W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

1.5KVDC Isolation
Input UVP

0.86x0.36x0.44(SIP8)

EC4AW

6W

9~36V, 18~72V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

1.5K/3KVdc Isolation

1.25x0.80x0.40(DIP24)
1.25×0.80x0.45(SMD24)

EC4SAW

6W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

1.5KVDC Isolation

0.86x0.36x0.44(SIP8)

EC6AW

8W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

1.5KVdc Isolation
EN50155 Compliant

1.25x0.80x0.40(DIP24)
1.25×0.80x0.45(SMD24)

EC6AW-110

10W

43~160V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

3KVdc Isolation
UL60950-1 & CB
EN45545-2
EN50155 Compliant

1.25x0.80x0.50(DIP24)

EC5SAW

10W

18~75V, 9~36V

12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

3KVDC Isolation

0.87x0.37x0.47(SIP8)

EC2SBW

10W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

1.5KVdc Isolation

1.00x1.00x0.40(DIP)

EC8AW

15W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, ±12V, ±15V

1.5KVdc Isolation
EN55022 Class A

1.25x0.80x0.40(DIP24)

EC3SBW

15W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

1.5KVdc Isolation

1.00x1.00x0.40(DIP)

EC5BW

15W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

1.5KVdc Isolation
EN55022 Class A

2.00x1.00x0.40(DIP)

EC7BW

20W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

1.5KVdc Isolation
EN45545-2
EN50155 Compliant

2.00x1.00x0.40(DIP)

EC7BW-110

20W

43~160V

5V, 12V, 15V, ±12V, ±15V

3KVdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant

2.00x1.00x0.40(DIP)

EC1SC

20W

9~36V, 18~72V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

EN55022 Class A

2.00×1.60×0.45(DIP)

EC4SBW

20W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, ±12V, ±15V

1.5KVdc Isolation

1.00x1.00x0.40(DIP)

EC5SBW

30W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, ±12V, ±15V

1.5KVdc Isolation

1.00x1.00x0.40(DIP)

EC9BW

30W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, ±12V, ±15V

1.5KVdc Isolation

2.00x1.00x0.40(DIP)

ECLB40W-110

40W

43~160V

3.3V, 5V, 12V, 15V, ±12V, ±15V, ±24V

3KVdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant

2.05x1.20x0.40(DIP)

ECLB40W

40W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, ±12V, ±15V

1.5KVdc Isolation
With Mounting Inserts

2.05x1.20x0.40(DIP)

CQE50W

50W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, 24V, 48V

1.5KVDC Isolation
UL60950-1

2.28×1.45x0.50
(Quarter Brick)

CHB50W

50W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, 24V, 28V, 48V

1.5KVDC Isolation
UL60950-1

2.28×2.40x0.50
(Half Brick)

CQB60W-110S

60W

43~160V

5V, 12V, 15V, 24V, 28V, 48V

3KVdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant

2.28×1.45x0.50
(Quarter Brick)

ECLB60W

60W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, ±12V, ±15V

1.5KVdc Isolation
With Mounting Inserts

2.05x1.20x0.40(DIP)

ECLB75W

75W

18~75V, 9~36V

5V, 12V, 15V, ±12V, ±15V, ±24V

2.25KVdc Isolation
With Mounting Inserts

2.05x1.20x0.40(DIP)

CQB75W

75W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, 24V

1.5KVDC Isolation
UL60950-1

2.28×1.45x0.50
(Quarter Brick)

CHB75W

75W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, 24V, 28V, 48V

1.5KVDC Isolation
UL60950-1

2.28×2.40x0.50
(Half Brick)

CQB100W-110S

100W

43~160V

5V, 12V, 15, 24V, 28V, 48V

3KVdc Isolation
UL60950-1 & CB
EN45545-2
EN50155 Compliant

2.28×1.45x0.50
(Quarter Brick)

CQB100W-110SXX-CMFC(D)

100W

43-160V

5V, 12V, 15V, 24V, 28V, 48V

Screw Terminal
Build in filter
Baseplate Cooled
EN45545-2
EN50155 Compliant

4.60x2.40x1.26
(CMFC)
4.60x2.49x1.35
(CMFD)

CQB100W

100W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, 24V

1.5KVDC Isolation
UL60950-1

2.28×1.45x0.50
(Quarter Brick)

CHB100W

100W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, 24V, 28V, 48V

1.5KVDC Isolation
UL60950-1

2.28×2.40x0.50
(Half Brick)

CQB150W-110S

150W

43~160V

3.3V, 5V, 12V, 15V, 24V, 28V, 48V

3KVdc Isolation
UL60950-1 & CB
EN45545-2
EN50155 Compliant

2.28×1.45x0.50
(Quarter Brick)

CQB150W-110SXX-CMFC(D)

150W

43~160V

12V, 15V, 24V, 28V, 3.3V, 48V, 5V

Screw Terminal
Build in filter
Baseplate Cooled
EN45545-2
EN50155 Compliant

4.60x2.40x1.26
(CMFC)
4.60x2.49x1.35
(CMFD)

CQB150W

150W

9~36V,18~75V

5V, 12V, 24V, 28V, 48V

2250Vdc Isolation
UL60950-1 & CB
EN45545-2
EN50155 Compliant

2.28×1.45x0.50
(Quarter Brick)

CHB150W

150W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, 24V, 28V, 48V

1.5KVDC Isolation
UL60950-1

2.28×2.40x0.52
(Half Brick)

CHB200W-110S

200W

43~160V

5V, 12V, 24V, 28V, 48V

3KVdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant

2.28×2.40x0.50
(Half Brick)

CHB200W-110SXX-CMFC(D)

200W

43-160V

5V, 12V, 24V, 28V, 48V

Screw Terminal
Build in filter
Baseplate Cooled
EN45545-2
EN50155 Compliant

6.50x3.00x1.52
(CMFC)
6.50x3.09x1.57
(CMFD)

CHB200W

200W

10~36V, 18~75V

3.3V, 5V, 12V, 15V, 24V, 28V, 48V

1.5KVDC Isolation
UL60950-1

2.28×2.40x0.52
(Half Brick)

CHB300W-110S

300W

43~160V

3.3V, 5V, 12V, 24V, 28V, 48V

3KVdc Isolation
UL60950-1 & CB
EN45545-2
EN50155 Compliant

2.28×2.40x0.50
(Half Brick)

CHB300W-110SXX-CMFC(D)

300W

43-160V

3.3V, 5V, 12V, 24V, 28V, 48V

Screw Terminal
Build in filter
Baseplate Cooled
EN45545-2
EN50155 Compliant

6.50x3.00x1.52
(CMFC)
6.50x3.09x1.57
(CMFD)

CHB300W

300W

9~36V, 18~75V

5V, 12V, 15V, 24V, 28V, 48V

1.5KVDC Isolation
UL60950-1

2.28×2.40x0.50
(Half Brick)

CFB400W

400W

9~36V, 18~75V

5V, 12V, 24V, 28V, 48V

1.5KVDC Isolation
UL60950-1

4.60×2.40x0.50
(Full Brick)

CFB600W-110S

600W

43-160V

12V, 24V, 28V, 48V

2250Vdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant

4.60×2.40x0.50
(Full Brick)

CFB600W-110SXX CMFD

600W

43-160V

12V, 24V, 28V, 48V

Screw Terminal
Build in filter
Baseplate Cooled
EN45545-2
EN50155 Compliant

9.45x4.33x1.65

8:1 Input Range

Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)

CQB50W8

50W

9~75V

12V, 15V, 24V, 28V, 48V

3KVac Isolation
UL62368 & CB
EN45545-2
EN50155 Compliant

2.28×1.45x0.50
(Quarter Brick)

CQB75W8

75W

9~75V

12V, 15V, 24V, 28V, 48V

3KVac Isolation
UL62368 & CB
EN45545-2
EN50155 Compliant

2.28×1.45x0.50
(Quarter Brick)

CHB150W8

150W

9~75V

12V, 15V, 24V, 28V, 48V

1.5KVDC Isolation
UL60950-1

2.28×2.40x0.50
(Half Brick)

12:1 Input Range

Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)

CQB50W12

50W

14~160V

5V, 12V, 24V, 48V

3KVdc Isolation
UL60950-1 & CB
EN45545-2
EN50155 Compliant

2.28×1.45x0.50
(Quarter Brick)

CQB50W12-72SXX-CMFC(D)

30-50W

14 -160V

5V, 12V, 24V, 48V

Screw Terminal
Build in filter
Baseplate Cooled
EN45545-2
EN50155 Compliant

4.60x2.40x1.26
(CMFC)
4.60x2.49x1.35
(CMFD)

CHB150W12

150W

14~160V

12V, 15V, 24V, 48V, 5V

3KVac Isolation
UL62368-1 & CB
EN45545-2
EN50155 Compliant

2.28×2.40x0.50
(Half Brick)

CHB200W12

200W

14~160V

12V, 15V, 24V, 48V

3KVac Isolation
UL62368-1 & CB
EN45545-2
EN50155 Compliant

2.28×2.40x0.50
(Half Brick)

18:1 Input Range

Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)

EC7BW18

20W

8.5~160V

12V, 15V, 5V, ±12V, ±15V, ±24V

3KVac Isolation
UL62368-1
EN45545-2
EN50155 Compliant

2.00x1.00x0.40(DIP)

High Isolation 6KV

Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)

EC4AW-H6

5-6W

9-36V, 18-72V

5V, 12V, +/-12V, +/-15V

6KVdc Isolation
EN55022 Class A
5uA Leakage Current

1.25x0.80x0.40
(DIP24)

EMI Filter - PCB Mount

Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)

FM10/20

10-20A

75V


Input 75V Maximum

2.00x1.00x0.46
2.00x1.60x0.50

FM30R

30A

80V


Input 80V Maximum

2.28x1.45x0.50

FM05D

5A

200V


Input 200V Maximum

2.28x1.45x0.50

FM10D

10A

200V


Input 200V Maximum

2.28x2.40x0.97
