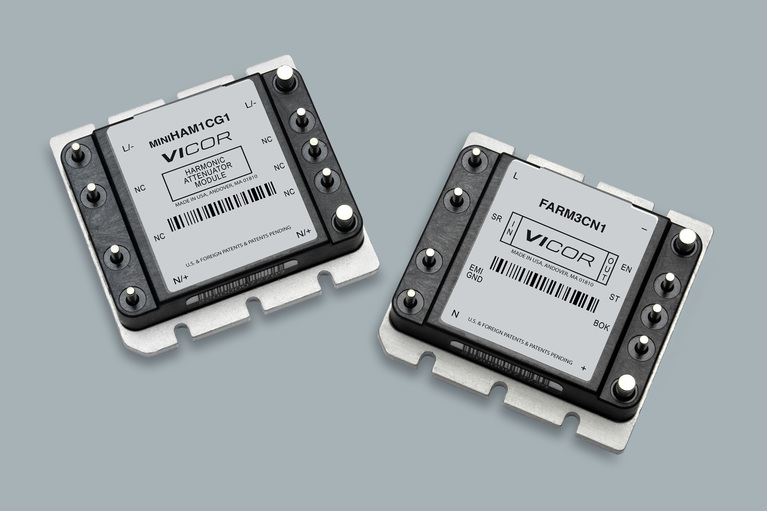

VICOR電源模塊EnMods整合FARM和HAM的單相 AC 前端系統
發布時間：2020-10-20 15:17:27 瀏覽：6781
VICOR電源模塊ENMOD系統是一種交流前端解決方案，它將無源功率因數校正和自動調整結合在一起。VICOR電源模塊ENMOD系統結合濾波和保持電容器，完全滿足EN61000-3-2諧波電流、EN55022B電平輻射、EN61000-4-5浪涌抗干擾、EN61000-4-11線路干擾和EN61000-3浪涌電流的要求。與有源PFC解決方案不同，VICOR電源模塊EnMods不產生EMI，這大大簡化和降低了系統噪聲和濾波要求。
VICOR電源模塊EnMods的特點和優勢
115/230 VAC輸入的自動調整
諧波電流衰減符合EN61000-3-2
EMI濾波器符合EN55022，B級
瞬態干擾抑制符合EN 61000-4-5
深圳市立維創展科技是VICOR電源模塊的代理經銷商，主要提供DC-DC、AC-DC電源模塊，隔離、非隔離電源模塊轉換器等，立維創展致力為客戶提供高品質、高質量、價格公正的微波元器件產品,歡迎咨詢.
詳情了解VICOR電源模塊請點擊：http://m.lunliu2.cn/brand/18.html
或聯系我們的銷售工程師：0755-83050846 QQ: 3312069749
Part Number | 產品等級 | 引腳形式 | 符合RoHS | 基板 |
EN1C11 | –20°C to +100°C | Short | No | Slotted |
EN1C12 | –20°C to +100°C | Short | No | Threaded |
EN1C13 | –20°C to +100°C | Short | No | Through hole |
EN1C21 | –20°C to +100°C | Long | No | Slotted |
EN1C22 | –20°C to +100°C | Long | No | Threaded |
EN1C23 | –20°C to +100°C | Long | No | Through hole |
EN1CS1 | –20°C to +100°C | Short ModuMate | No | Slotted |
EN1CN1 | –20°C to +100°C | Long ModuMate | No | Slotted |
EN1CN2 | –20°C to +100°C | Long ModuMate | No | Threaded |
EN1CN3 | –20°C to +100°C | Long ModuMate | No | Through hole |
EN1T11 | –40°C to +100°C | Short | No | Slotted |
EN1T21 | –40°C to +100°C | Long | No | Slotted |
EN1T22 | –40°C to +100°C | Long | No | Threaded |
EN1T23 | –40°C to +100°C | Long | No | Through hole |
EN1TS1 | –40°C to +100°C | Short ModuMate | No | Slotted |
EN1TN1 | –40°C to +100°C | Long ModuMate | No | Slotted |
EN1TN2 | –40°C to +100°C | Long ModuMate | No | Threaded |
EN1H21 | –40°C to +100°C | Long | No | Threaded |
EN1HN1 | –40°C to +100°C | Long ModuMate | No | Slotted |
EN1HN3 | –40°C to +100°C | Long ModuMate | No | Through hole |
EN1CF2 | –20°C to +100°C | Short RoHS | Yes | Threaded |
EN1CG1 | –20°C to +100°C | Long RoHS | Yes | Slotted |
EN1CG2 | –20°C to +100°C | Long RoHS | Yes | Threaded |
EN1CG3 | –20°C to +100°C | Long RoHS | Yes | Through hole |
EN1TG1 | –40°C to +100°C | Long RoHS | Yes | Slotted |
EN1HG1 | –40°C to +100°C | Long RoHS | Yes | Slotted |
