2000-4000 MHz Directional Coupler
The Q10HG-3850R is a broadband, bi-directional coupler with high power handling. It is suitable for AWS, DCS, PCS, UMTS, CDMA , IMT and more…
Specifications

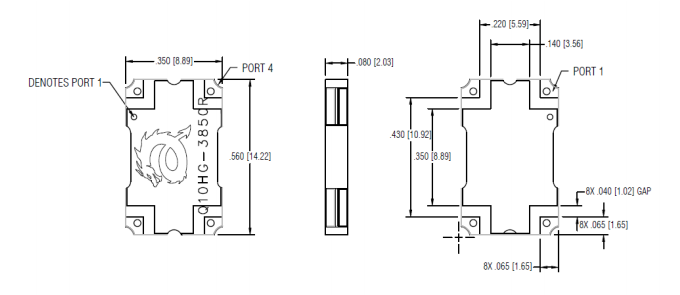

Size: .560 X .350 inches
Frequency: 2 – 4 GHz
Coupling: 10 dB ± 1 dB
Directivity: 21 dB
VSWR: 1.12:1
Insertion Loss: 0.1 dB
Power: 150 W
Evaluation board 722-0006-03-E01
