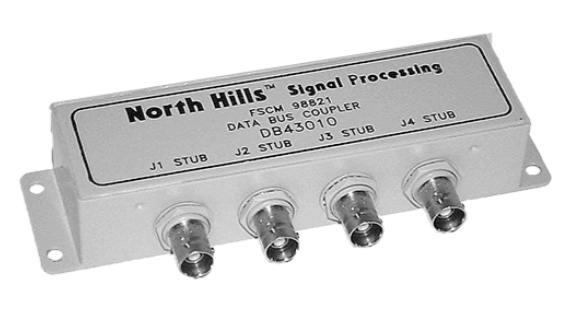

DB43010內置端接耦合器North Hills
發布時間：2024-09-24 09:13:03 瀏覽：5888
North
Hills數據總線耦合器現已升級，內置雙總線端接器，適用于小型網絡(最多8個短截線)。這一創新設計省去了外部端接器的成本和復雜性，簡化了安裝過程，并確保端接器不會丟失或與虛擬負載混淆。耦合器作為網絡的中心節點，保持了North
Hills一貫的卓越電氣和環境性能。所有電阻器均符合MIL-R-39007標準，并遠離變壓器安裝，以最大限度減少干擾效應。
優勢：
無需額外的外部端接器
非常適合簡單、短途的巴士系統
支持連接器的連接
特點：
內置兩個端接器
集成了完整的總線功能
提供箱式或直列式選項
型號：
| Coupler |
|
|
| #of Stubs | Model #(I Terminaton | Model#(2 Terminators) | Mating Connector |
| 2 Stub | DB22010 | DB23010 | TRB(PL75Type) |
| 2 Stub | DB22020 | DB23020 | TRT(PL375 Type) |
| 2 Stub | DB22030 | DB23030 | TRS (PL150 Type) |
| 2 Stub | DB22040 | DB23040 | TM(PL3150 Type |
| 3 Stub | DB32010 | DB33010 | TRB(PL75 Type) |
| 3 Stub | DB32020 | DB33020 | TRT(PL375 Type) |
| 3 Stub | DB32030 | DB33030 | TRS(PL150 Type) |
| 3 Stub | DB32040 | DB33040 | TM(PL3150 Type) |
| 4 Stub | DB42010 | DB43010 | TRB(PL75 Type) |
| 4 Stub | DB42020 | DB43020 | TRT(PL375 Type) |
| 4 Stub | DB42030 | DB43030 | TRS (PL150 Type) |
| 4 Stub | DB42040 | DB43040 | TM(PL3150 Type) |
| 5 Stub | DB52010 | DB53010 | TRB(PL75 Type |
| 5 Stub | DB52020 | DB53020 | TRT(PL375 Type) |
| 5 Stub | DB52030 | DB53030 | TRS (PL150 Type) |
| 5.Stub | DB52040 | DB53040 | TM(PL3150 Type) |
| 8 Stub | DB82031 | DB83031 | TRS(PL150 Type |
| 8 Stub | DB82091 | DB83091 | TRB(PL75 Type) |
| In-Line Type DB Series -Micro Couplers |
|
| #of Stubs | Model#(1Terminator) | Model#(2 Terminators) | Mating Connector |
| 2 Stub | DB22005 | DB23005* |
|
| 3 Stub | DB32005 | DB33005* |
|
| 4 Stub | DB42005 | DB43005* |
|
| In-Line Type DB Series -Through Hole In-Line Couplers |
| #of Stubs | Model #(1 Terminator) | Model#(2 Terminators) | Mating Connector |
| 2 Stub | DB22105 | DB23105* |
|
| 3 Stub | DB32105 | DB33105* |
|
| 4 Stub | DB42105 | DB43105* |
|
