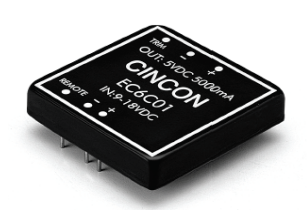

EC6C15
DC-DC轉換器是一款隔離式的電源模塊，具有25-30W的輸出功率，其外殼為2"x2"的六面屏蔽金屬。該轉換器的輸入范圍為2:1，輸出電壓為5V，效率高達88%，該轉換器已經通過了UL60950-1標準認證，并符合IEC/EN/UL62368-1的安全標準。此外，該轉換器還具備遠程開/矢控制功能。
產品型號：
MODEL
NUMBER | INPUT
VOLTAGE | OUTPUT
VOLTAGE | OUTPUT CURRENT | INPUT CURRENT | %
EFF | CAPACITOR
LOAD MAX. |
| MIN. | MAX. | NO LOAD | FULL
LOAD |
| EC6C01 | 9-18 VDC | 5 VDC | 0 mA | 5000 mA | 30 mA | 2675 mA | 84 | 5000uF |
| EC6C02 | 9-18 VDC | 12 VDC | 0 mA | 2500 mA | 30 mA | 3050 mA | 88 | 2500uF |
| EC6C03 | 9-18 VDC | 15 VDC | 0 mA | 2000 mA | 30 mA | 3050 mA | 88 | 2000uF |
| EC6C04 | 9-18 VDC | ±5 VDC | ±0 mA | ±2500 mA | 35 mA | 2675 mA | 83 | 2500uF |
| EC6C05 | 9-18 VDC | ±12 VDC | ±0 mA | +1250 mA | 35 mA | 3050 mA | 88 | 1250uF |
| EC6C06 | 9-18 VDC | ±15 VDC | ±0 mA | ±1000 mA | 35 mA | 3050 mA | 87 | 1000uF |
| EC6C07 | 9-18 VDC | 5/±12 VDC | 500/±100 mA | 3500/±310 mA | 35 mA | 2640 mA | 81 | 3500/310uF |
| EC6C08 | 9-18 VDC | 5/±15 VDC | 500/±100 mA | 3500/±250 mA | 35 mA | 2640 mA | 82 | 3500/250uF |
| EC6C09 | 9-18 VDC | 3.3 VDC | 0 mA | 5000 mA | 30 mA | 1860 mA | 80 | 5000uF |
| EC6C11 | 18-36 VDC | 5 VDC | 0 mA | 5000 mA | 30 mA | 1336 mA | 83 | 5000uF |
| EC6C12 | 18-36 VDC | 12 VDC | 0 mA | 2500 mA | 30 mA | 1525 mA | 87 | 2500uF |
| EC6C13 | 18-36 VDC | 15 VDC | 0 mA | 2000 mA | 30 mA | 1525 mA | 87 | 2000uF |
| EC6C14 | 18-36 VDC | ±5 VDC | ±0 mA | ±2500 mA | 30 mA | 1336 mA | 82 | 2500uF |
| EC6C15 | 18-36 VDC | ±12 VDC | ±0 mA | ±1250 mA | 30 mA | 1470 mA | 87 | 1250uF |
| EC6C16 | 18-36 VDC | ±15 VDC | ±0 mA | ±1000 mA | 30 mA | 1470 mA | 86 | 1000uF |
| EC6C17 | 18-36 VDC | 5/±12 VDC | 500/±100 mA | 3500/±310 mA | 30 mA | 1320 mA | 82 | 3500/310uF |
| EC6C18 | 18-36 VDC | 5/±15 VDC | 500/±100 mA | 3500/+250 mA | 30 mA | 1320 mA | 82 | 3500/250uF |
| EC6C19 | 18-36 VDC | 3.3 VDC | 0 mA | 5000 mA | 30 mA | 920 mA | 79 | 5000uF |
| EC6C21 | 36-72 VDC | 5 VDC | 0 mA | 5000 mA | 20 mA | 660 mA | 83 | 5000uF |
| EC6C22 | 36-72 VDC | 12 VDC | 0 mA | 2500 mA | 20 mA | 765 mA | 87 | 2500uF |
| EC6C23 | 36-72 VDC | 15 VDC | 0 mA | 2000 mA | 20 mA | 765 mA | 87 | 2000uF |
| EC6C24 | 36-72 VDC | ±5 VDC | ±0 mA | ±2500 mA | 25 mA | 660 mA | 82 | 2500uF |
| EC6C25 | 36-72 VDC | ±12 VDC | ±0 mA | ±1250 mA | 25 mA | 735 mA | 87 | 1250uF |
| EC6C26 | 36-72 VDC | ±15 VDC | ±0 mA | ±1000 mA | 25 mA | 735 mA | 87 | 470uF |
| EC6C27 | 36-72 VDC | 5/±12 VDC | 500/±100 mA | 3500/±310 mA | 25 mA | 655 mA | 83 | 2200/220uF |
| EC6C28 | 36-72 VDC | 5/±15 VDC | 500/±100 mA | 3500/±250 mA | 25 mA | 655 mA | 82 | 1500/150uF |
| EC6C29 | 36-72 VDC | 3.3 VDC | 0 mA | 5000 mA | 20 mA | 460 mA | 79 | 5000uF |
