MITEQ 0.5至18 GHz和2至18

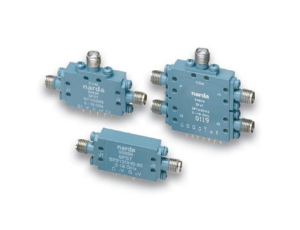

GHz高性能PIN開關系列提供了快速的開關速度和低插入損耗，封裝緊湊。這些開關采用Narda頂級超薄系列相同的電路設計，適合連接應用中無需絕對最薄配置的場合。每個型號均配備具有反向電壓保護功能的整體驅動器，驅動器與TTL兼容，根據每個射頻電路的特點進行定制，以確保最佳的開關性能。小巧、高速、寬帶、低插入損耗使這些開關成為電子戰系統、自動測試設備和模擬器的理想選擇。
特點：
- 支持 SPST 直通 SP6T 和傳輸 (標準) 功能
- 高速操作：15 ns
- 高隔離度：高達80dB
- 低插入損耗
- 尺寸緊湊
- 集成 TTL 驅動器
- 密封設計
產品選型：
Reflective Switches,SMA (F),0.5 to 18 GHz |
MODEL | TYPE | SWITCHING TIME
MODULATION
(ns) | BAND
SEGMENTS
(GHz) | INSERTION
L05S
dB max.) | VSWR
(max.) | S0LATION
dB min.) | POWER
HANDLING
(mW) | POWER
REQUIRE
mA@+5V | SUPPLY
MENTS
mA@-12V |
SP212DHS | SPST | 15 | 0.5-2
2-12
12-18 | 1.2
2.1
2.6 | 1.6
1.9
2.0 | 70
70
70 | 200 | 50 | 50 |
SP212DHS-80 | SPST | 15 | 0,5-2
2-12
12-18 | 1.2
2.2
2.7 | 1.6
1.9
2.0 | 80
80
80 | 200 | 50 | 50 |
SP122DHS | SP2T | 20 | 0.5-2
2-12
12-18 | 1.5
2.4
2.9 | 1.8
2.0
2.0 | 70
65
60 | 200 | 90 | 60 |
SP132DHS | SP3T | 20 | 0.5-2
2-12
12-18 | 1.5
2.5
3.0 | 1.8
2.0
2.0 | 70
65
60 | 200 | 90 | 60 |
SP142DHS | SP4T | 20 | 0,5-2
2-12
12-18 | 1.6
2.6
3.2 | 1.8
2.0
2.0 | 70
65
60 | 200 | 110 | 70 |
SP152DHS | SP5T | 20 | 0.5-2
2-12
12-18 | 2.0
3.0
3.6 | 1.8
2.0
2.0 | 70
65
60 | 200 | 220 | 90 |
SP162DHS | SP6T | 20 | 0.5-2
2-12
12-18 | 2.0
3.0
3.6 | 1.8
2.0
2.0 | 70
65
60 | 200 | 220 | 100 |
Absorptive Switches,SMA(F),0.5 to 18 GHz |
MODEL | TYPE | SWITCHING TIME
MODULATION
(ns) | BAND
SEGMENTS
GHz) | INSERTION
L05S
dB max. | VSWR
(max. | ISOLATION
dB min | POWER
HANDLING
(mW | POWER SUP
mA@+5V | PLY REQUIREMENTS
mA@-12Vto-15V |
SP212DHTS | SPST | 30 | 0.5-12
12-18 | 2.4
2.8 | 1.9
2.0 | 55
50 | 200 | 50 | 60 |
SP122DHTS | SP2T | 30 | 0.5-12
12-18 | 2.7
3.1 | 1.9
2.0 | 60
55 | 200 | 60 | 60 |
SP132DHTS | SP3T | 30 | 0.5-12
12-18 | 2.9
3.4 | 1.9
2.0 | 60
45 | 200 | 105 | 75 |
SP142DHTS | SP4T | 30 | 0.5-12
12-18 | 2.9
3.4 | 1.9
2.0 | 60
45 | 200 | 110 | 80 |
SP152DHTS | SP5T | 30 | 0.5-12
12-18 | 3.3
4.0 | 2.0
2.0 | 60
50 | 200 | 220 | 90 |
SP162DHTS | SP6T | 30 | 0.5-12
12-18 | 3.3
4.0 | 2.0
2.0 | 60
50 | 200 | 250 | 100 |
Reflective Switches,SMA (F),2 to 18 GHz |
MODEL | TYPE | SWITCHING TIME
MODULATION
(ns) | BAND
SEGMENTS
(GHz) | INSERTION
L05S
dB max.) | VSWR
(max.) | ISOLATION
(dB min.) | POWER
HANDLING
(mW) | POWER SUPPLY
REQUIREMENTS
mA@+5V mA@-12V |
SP213DHS | SPST | 15 | 2-12
12-18 | 1.9
2.4 | 1.9
2.0 | 50
60 | 500 | 50 | 60 |
SP213DHS-80 | SPST | 15 | 2-12
12-18 | 1.9
2.5 | 1.9
2.0 | 70
80 | 500 | 50 | 50 |
SP123DHS | SP2T | 15 | 2-12
12-18 | 2.4
2.9 | 1.9
2.0 | 65
60 | 200 | 90 | 60 |
SP123DHS-80 | SP2T | 15 | 2-12
12-18 | 2.2
2.9 | 2.0
2.0 | 80
80 | 200 | 90 | 60 |
SP133DHS | SP3T | 15 | 2-12
12-18 | 2.6
3.0 | 1.9
2.0 | 65
60 | 200 | 110 | 70 |
SP143DHS | SP4T | 15 | 2-12
12-18 | 2.6
3.0 | 1.9
2.0 | 65
60 | 200 | 110 | 70 |
SP153DHS | SP5T | 20 | 2-12
12-18 | 3.0
3.6 | 2.0
2.0 | 65
60 | 200 | 220 | 90 |
SP163DHS | SP6T | 20 | 2-12
12-18 | 3.0
3.6 | 2.0
2.0 | 65
60 | 200 | 250 | 100 |
Transfer Switches,SMA(F),2 to 18 GHz |
MODEL | TYPE | SWITCHING
TIME
(ns) | BAND
SEGMENTS
(GHz) | INSERTION
L05S
(dB max. | VSWR
(max.) | ISOLATION
(dB min.) | POWER
HANDLNG
(mW) | POWER
REQUIR
mA@+5V | SUPPLY
EMENTS
mA@-12V |
XSP323DHS | XFER | 50 | 2-12
12-18 | 2.8
3.4 | 2.0
2.0 | 60
65 | 200 | 90 | 80 |
Absorptive Switches,SMA(F),2 to 18 GHz |
MODEL | TYPE | SWITCHING TIME
MODULATION
(ns) | BAND
SEGMENTS
(GHz) | INSERTION
L05S
(dB max.) | VSWR
(max.) | ISOLATION
(dB min.) | POWER
HANDLING
(mW) | POWER
REQUIR
mA@+5V | SUPPLY
EMENTS
mA@-12V |
SP213DHTS | SPST | 25 | 2-12
12-18 | 2.1
2.5 | 1.9
2.0 | 55
50 | 200 | 40 | 60 |
SP213DHTS-80 | SPST | 25 | 2-12
12-18 | 2.1
2.6 | 1.9
2.0 | 70
80 | 200 | 50 | 60 |
SP123DHTS | SP2T | 25 | 2-12
12-18 | 2.5
2.9 | 1.9
2.0 | 60
55 | 200 | 60 | 60 |
SP133DHTS | SP3T | 25 | 2-12
12-18 | 2.7
3.2 | 1.9
2.0 | 60
45 | 200 | 105 | 75 |
SP143DHTS | SP4T | 25 | 2-12
12-18 | 2.7
3.2 | 1.9
2.0 | 60
45 | 200 | 105 | 75 |
SP153DHTS | SP5T | 25 | 2-12
12-18 | 3.2
3.8 | 2.0
2.0 | 60
50 | 200 | 220 | 90 |
SP163DHTS | SP6T | 25 | 2-12
12-18 | 3.2
3.8 | 2.0
2.0 | 60
50 | 200 | 250 | 100 |
