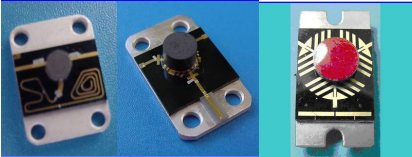

RDKF系列2/4孔微帶隔離器RADITEK
發布時間：2024-03-22 09:05:10 瀏覽：913
RADITEK公司精心打造的RDKF系列隔離器，包含三款卓越的型號：RDKF-4孔(1.7 - 15.7 GHz)、RDKF-2孔(6.3 - 37.5
GHz)以及RDKF/RDKC-80系列(1.7-2.9GHz)。每一款型號都經過嚴格設計與測試，以滿足不同頻段下的高性能要求。
這些RDKF系列隔離器和環行器，正是為了滿足您多樣化的微帶應用需求而生。我們深知每個項目都有其獨特的頻率要求，因此，我們可根據您的具體需求進行精準優化，確保產品性能達到最佳狀態。在標準尺寸方面，我們提供了插入式替換FDK和TDK等多種選擇，輕松適應您的各種安裝環境。
此外，RDKF系列隔離器所有的薄膜隔離電路均采用銅上鍍金工藝，這種優質材料不僅導電性能卓越，而且焊接兼容性極佳。無論是選擇普通焊料還是更為優質的銀焊料，都能輕松實現高質量的焊接效果。同時，金熱壓縮鍵合技術也為您提供了另一種高效、穩定的連接方式。
產品參數：
Mode
foot
print | Frequency
(GHz) | %bw
max | Fwd
Power
max | Available loads.
Watts | Pad
height
mm | Height
Mm
max | Pad
width
mm |
| -80 | 1.7-3.0 | 25 | 15 | 0.25,1,2,10 | 2.2 | 6.0 | *See
Pnge 11 |
| -78 | 2.8-3.7 |
| 10 | 5 | 1.3 | 6.0 | See
Page 11 |
| 70/71 | 3-11 | 17 | 10/25 | 0.25,1.2.5.10,15,20 | 2.2 | 6.0 | 1.0/0.8 |
| -68 | 3.7-12 |
| 20 | 0.2W | 2.2 | 6.5 |
|
| -65 | 3.7-5.8 | 14 | 25 | 2,025 | 1.85 | 6.0 |
|
| -64 | 9.1-9.5 | 10 | 30 | 30 | 2.2 | 6.1 |
|
| -63 | 9.5-10.5 | 10 | 25 | 20 | 1.635 | 5.5 |
|
| 61 | 4-9 | 18 | 20/50 | 0.25,2,8,10,15,20 | 1.85
2.45) | 5.5 | 0.43 |
| 43 | 9.0-16.0 | 10 | 15/25/30 | 1,2,10,12,15,20* | 1.65 | 5.65 | 0.43 |
| 49 | 14.0-14.5 | 10 | 12 | 2,10,12 Max | 1.50 | 4.6 |
|
| General specificatlons:2 hole models |
Model
foot
prin | Frequency
(GHz) | Maximum
bandwidth
available
% | Max
Fwd
power
(W) | Available
oads.
Watts | Pad
height
mm
X | Height
max
Y | Pad
width
mm | Equiv
o |
| 62 | 3.4-6.7 | 8 | 25 | 25 | tba | tba |
|
|
| 51 | 6 to 13 | 10 | 10 | 1,6,10
(10W load
3.3mm max | 1.65 | 5.5 | 0.43 | FDK |
| 42 | 9-15 | 24 | 20 | 1,015.20 | 1.65
max | 5.5 |
| FDK |
| 41 | 9-15 | 24 | 15 | 1,351,015 | 1.65
1.40 | 5.5 | 0.45 | FDK |
| 41 | 14-17 | 20 | 15 | 1.3,5,10.15 | 1.50
1.40 | 5.5 | 0.356 | FDK |
| 41 | 17-20 | 20 | 15 | 1,351,015 | 1.65
1.40 | 5.5
(4.2) | 0.35 | FDK
(≤opl) |
| -40 | 10-23 | 24 | 12 | 0.25,0.5,1,2 | 1.65 | 5.5 |
| FDK |
| -40T | 20-23 | 10 | 2 | 1 | 1.65 | 5.5 |
| TDK |
| 39 | 9-15 |
| 5 | 1 | 1.65 | 5.0 |
| Special |
| 31 | 17-31 | 8 | 6 | 1 | 1.50 | 5.0 | 0.25 | FDK |
| 21 | 18-36 | 8 | 56 | 12.6 | 1.55 | 5.0 | 0.17 | FDK |
| -11 | 32-43 | 10 | 5 | 13 | 1.14 | 4.5 | 0.14 |
|
| Specifications: |
|
|
|
|
| Units |
| Frequency | 1.7-2.4 | 1.8-2.2 | 1.9-2.4 | 1.9-2.6 | 2.0-2.5 | GHz(full band) |
| Bandwidth (F2-F1) | Full | Full | Full | (500M | Full |
|
| Insertion loss | 0.5 | 0.6 | 0.6
17 | 0.6 | 0.6 | dB(maximum |
| lsolation | 20 | 17 | 17 | 17 | dB(minimum |
| VSWR | 1.3:1 | 1.3:1 | 1.3:1 | 1.3:1 | 1.3:1 |
|
| Rated power-Forward | 10 | 15 | 15
0.25,1,5,10 | 15 | 15 | Watts (max |
| Rated power-Reverse | 0.25,1,5,10 | 0.25,1,5,10 | 0.25,1,5,10 | 0.25,1,5,10 | Watts (max |
| Operating temperature | -30 to +70 | -30 to +70 | -30 to +70 | -30 to +70 | -30 to +70 | C |
|
|
| e | e |
|
|
| Specifications: |
|
|
|
|
| Units |
| Frequency | 2.3-2.5 | 2.35-2.65 | 2.3-2.7
Full
0.5 | 2.4-2.5 | 2.4-2.8 | GHz(full band) |
| Bandwidth (F2-F1) | Full | Full | Full | Full |
|
| Insertion loss | 0.4 | 0.4 | 0.4 | 0.5 | dB(maximum) |
| lsolation | 20 | 22 | 20
1.28:1
15 | 22 | 20 | dB(minimum |
| VSWR | 1.28:1 | 1.25:1 | 1.25:1 | 1.25:1 |
|
| Rated power-Forward | 15 | 15 | 15 | 15 | Watts ( max |
| Rated power-Reverse | 0.25,1,5,10 | 0.25,1,5,10 | 0.25,1,5,10
-30 to +70
e | 0.25,1,5,10 | 0.25,1,5,10 | Watts ( max |
| Operating temperature | -30 to +70 | -30 to +70 | -30 to +70 | -30 to +70 | C |
| e |
|
| e |
|
| Specifications: |
|
|
|
|
| Units |
| Frequency | 2.7-2.9 |
|
|
|
| GHz(full band) |
| Bandwidth (F2-F1) | Full |
|
|
|
|
|
| Insertion loss | 0.4 |
|
|
| dB(maximum) |
| lsolation | 20 |
|
|
| dB(minimum |
| VSWR | 1.22:1 |
|
|
|
|
|
| Rated power-Forward | 15 |
|
|
|
| Watts (max |
| Rated power-Reverse | 0.25,1,5,10 |
|
|
| Watts (max) |
| Operating temperature | -30 to +70 |
|
|
|
| ℃ |
| e |
|
|
|
|
深圳市立維創展科技授權代理RADITEK微波隔離器和環形器產品，部分型號備有現貨。產品原裝進口，質量保證，歡迎咨詢。
