?KR Electronics低通濾波器BNC連接器
發布時間：2024-03-05 17:14:26 瀏覽：788
KR Electronics低通濾波器是指輸入信號的頻率少于某一頻率響應時，低通濾波器能夠測試信號使其保存低頻率成分，同時阻攔或降低某些超過頻率響應的信號。KR Electronics低通濾波器廣泛應用于電子線路數據平滑聲學阻塞圖像模糊等領域。

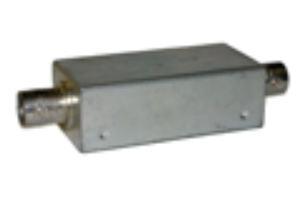

KR Electronics低通濾波器BNC連接器是經常使用的射頻連接器之一，這是一種能夠?qū)崿F(xiàn)相互連接的小型接口連接器，KR Electronics低通濾波器BNC連接器廣泛應用于無線通信網絡、網絡電視、檢測設備、等其他射頻電子產品中。
KR Electronics是美國一家資深射頻濾波器設計公司，服務于軍工與商業市場。其濾波器產品Bandpass Filter(帶通濾波器）、Highpass Filters(高通濾波器）、Lowpass Filters（低通濾波器）、Root Cosine Filters(根余弦濾波器)、Notch Filters(陷波濾波器)、Diplexer Filters（雙工濾波器）、Equalizers(平衡濾波器）等，產品特色以極低頻率和優秀參數著稱。
深圳市立維創展科技有限公司授權代理銷售KR Electronics濾波器產品。并提供售前和售后技術支持服務，歡迎咨詢。
Part Number | Cutoff
Frequency | Attenuation
at Cutoff | Stopband
Frequency | Stopband
Attenuation | Case
Style | Notes/Special Features |
3363-10HZ-BNC | 10 HZ | 3 | 40 HZ | 48 | BNC | Active Filter |
2195-BNC | 16 Hz | 3 | 60 Hz | 40 | BNC | Active Filter |
2376-50-BNC | 50 Hz | 3 | 126 Hz | 48 | BNC | Active Filter |
3394-100HZ-BNC | 100 Hz | 3 | 560 Hz | 60 | BNC | Active Filter |
2321-BNC | 300 Hz | 3 | 1 KHz | 40 | BNC | Active Filter |
2216-BNC | 700 Hz | 3 | 2.3 KHz | 40 | BNC | Active Filter |
2255-BNC | 4 KHz | 3 | 4.4 KHz | 60 | BNC | 10 KOhm |
3313 | 4.5 KHz | 3 | 100 KHz | 60 | BNC | Active Filter |
3201-20-BNC | 20 KHz | 3 | 32 KHz | 52 | BNC |
|
2928-1 | 100 KHz | 1 | 140 KHz | 45 | BNC | BNC(F)/BNC(F) |
2928 | 100 KHz | 1 | 140 KHz | 45 | BNC | BNC(F)/BNC(M) |
2275-1.5-BNC | 150 KHz | 3 | 240 KHz | 50 | BNC |
|
2275-2-BNC | 200 KHz | 3 | 320 KHz | 52 | BNC |
|
2275-5-BNC | 500 KHz | 3 | 800 KHz | 52 | BNC |
|
3271-BNC | 1 MHz | 0.5 | 1.4 MHz | 45 | BNC | Stopband to >6 GHz |
2297-1-BNC | 1 MHz | 0.5 | 1.4 MHz | 45 | BNC |
|
2929 | 1 MHz | 1 | 1.3 MHz | 45 | BNC |
|
2351 | 1.6 MHz | 3 | 5 MHz | 27 | BNC | 75 Ohm Bessel Filter |
2218 | 1.75 MHz | 0.25 | 2.41 MHz | 45 | BNC | 75 Ohm
Group Delay Equalized |
2391 | 1.75 MHz | 0.25 | 2.41 MHz | 45 | BNC | Group Delay Equalized |
2391-1.75-75 | 1.75 MHz | 0.25 | 2.42 MHz | 45 | BNC | 75 Ohm
Group Delay Equalized |
3202-2-BNC | 2 MHz | 0.5 | 2.8 MHz | 45 | BNC |
|
2547-2000 | 2 MHz | 1 | 4 MHz | 45 | BNC | Group Delay Equalized |
2547-3000 | 3 MHz | 1 | 6 MHz | 45 | BNC | Group Delay Equalized |
2547-3500 | 3.5 MHz | 1 | 7 MHz | 45 | BNC | Group Delay Equalized |
2391-3.5-75 | 3.5 MHz | 0.25 | 4.83 MHz | 45 | BNC | 75 Ohm
Group Delay Equalized |
2547-4000 | 4 MHz | 1 | 8 MHz | 45 | BNC | Group Delay Equalized |
2495 | 5 MHz | 3 | 5.3 MHz | 40 | BNC |
|
2391A-6-50 | 6 MHz | 0.25 | 8.28 MHz | 45 | BNC | Group Delay Equalized |
2391A-8-50 | 8 MHz | 0.25 | 11.04 MHz | 45 | BNC |
|
2391A-10-75 | 10 MHz | 0.25 | 13.8 MHz | 45 | BNC | 75 Ohm
Group Delay Equalized |
2297-7-BNC | 16 MHz | 0.5 | 22.4 MHz | 45 | BNC |
|
2297-7-BNC-1 | 16 MHz | 1.5 | 22.4 MHz | 45 | BNC |
|
2391A-16-50 | 16 MHz | 0.25 | 22.1 MHz | 45 | BNC | Group Delay Equalized |
2391B-18-50 | 18 MHz | 0.25 | 24.84 MHz | 45 | BNC | Group Delay Equalized |
2391B-45-50 | 45 MHz | 0.25 | 62.1 MHz | 45 | BNC | Group Delay Equalized |
