?SMT隔離器和循環器RF-Labs
發布時間：2024-01-08 16:57:19 瀏覽：825

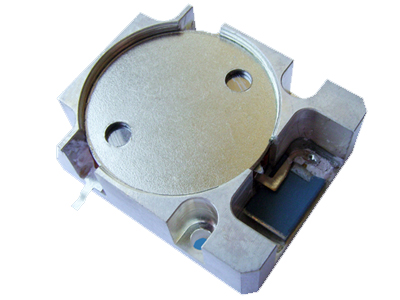

RF-Labs的SMT隔離器和循環器表面貼裝技術適合用在拾放和回流焊接。SMT隔離器和循環器的制作工作頻段從L到X頻率段，適合用在通信網絡、商業航空電子系統以及使用表面貼裝技術(SMT)規模較大的 AESA 工程。
與此相反的C波段Radalt SMT隔離器已提供超出15年，并應用于全世界50%以上的商業航空運輸機隊所選用的雷達高度測量儀。
Operating Band [GHz] | Function | Base Package Footprint WDH [mm x mm] | Power Handling [W Peak] | Notes |
1.2 to 1.4 | Circulator | 25.4 x 25.4 x 7.8 | 450 | This is a “T” configuration device. |
1.2 to 1.4 | Isolator | 25.4 x 31.7 x 7.8 | 450 | Termination rating is specification dependant. |
1.2 to 1.4 | Duplexer | 25.4 x 59.0 x 7.8 | 450 | 3 and 4 access port variants available. |
2.7 to 3.3 | Circulator | 19.05 x 19.05 x 6.35 | 200 | A more compact version operating at 40W CW. |
2.7 to 3.3 | Isolator | 19.05 x 25.4 x 6.35 | 200 | Termination rating is specification dependant. |
2.7 to 3.3 | Duplexer | 19.05 x 44.1 x 6.35 | 200 | 3 and 4 access port variants available. |
2.7 to 3.1 | Circulator | 19.05 x 19.05 x 6.35 | 200 | This is a “T” configuration device. |
2.7 to 3.1 | Isolator | 19.05 x 25.4 x 6.35 | 200 | Termination rating is specification dependant. |
2.7 to 3.1 | Duplexer | 19.05 x 44.1 x 6.35 | 200 | This is a “T” configuration device. |
2.9 to 3.4 | Isolator | 19.05 x 19.05 x 6.30 | 200 | Termination rating is specification dependant. |
2.9 to 3.4 | Circulator | 19.05 x 25.5 x 6.30 | 200 | This is a “T” configuration device. |
2.9 to 3.4 | Duplexer | 19.05 x 46.5 x 6.30 | 200 | 3 and 4 access port variants available. |
3.1 to 3.5 | Isolator | 12.7 x 12.7 x 6.35 | 200 | This is a “T” configuration device. |
3.1 to 3.5 | Circulator | 12.7 x 19.05 x 6.35 | 200 | This is a “T” configuration device. |
3.1 to 3.5 | Duplexer | 12.7 x 25.4 x 6.35 | 200 | 3 and 4 access port variants available. |
5.2 to 5.9 | Circulator | 12.7 x 12.7 x 5.1 | 50 | This is a “T” configuration device. |
5.2 to 5.9 | Isolator | 12.7 x 25.4 x 5.1 | 50 | Termination rating is specification dependant. |
5.2 to 5.9 | Circulator | 12.7 x 24.6 x 5.1 | 50 | This is a “T” configuration device. |
8.0 to 12.0 | Circulator | 12.7 x 12.7 x 3.5 | 50 | This is a “T” configuration device. |
8.0 to 12.0 | Isolator | 12.7 x 10.0 x 3.5 | 50 | This is a “T” configuration device. |
8.0 to 12.0 | Duplexer | 12.7 x 16.0 x 3.5 | 50 | Refer to factory for alternative footprints. |
