?D-Sub經濟型系列板裝連接器AMPHENOL

發布時間：2023-07-26 16:46:02 瀏覽：1329

AMPHENOL ICC的D-Subminiature(D-Sub)連接器選用行業標準，適用于能夠使用經久耐用且安全可靠的連接器應用。這些通過檢驗的D-Sub經濟型系列板裝連接器是最受歡迎輸入/輸出連接器之一，能夠滿足電信網絡、數據信息、生活消費、工業生產、國防軍事和醫療服務行業中廣泛應用需求。AMPHENOL ICC提供D-Sub經濟型系列板裝連接器，能夠滿足所有的設計需求并符合低要求應用針對安全可靠連接器不斷增長的需求。

特征

設計適用于低要求應用

D型支架設計

滿足DIN41652和MIL-C-24308規格標準

沖壓和成型接插件

插拔次數超過50次

提供有直向和直角接插件

配備滿足歐盟和美國設計需求的直角版本

優勢

穩固安全可靠、價格實惠的連接器

兼容極化需求

能夠和其它設備進行交換和組配

降低成本解決方案

適用于數字機頂盒、智能電表和控制模塊等應用

各種PCB組裝選擇

可適用于10.4/2.54mm和8.08/2.84mm的尺寸/間距選擇

深圳市立維創展科技代理經銷AMPHENOL公司各個領域產品系列，在AMPHENOL，AMPHENOL相信在開展業務的過程中做出可持續的選擇可以為股東創造短期和長期價值。AMPHENOL的每一項業務都致力于不斷改進其設計，采購，制造和交付產品的方式，努力滿足或超越客戶對整個價值鏈中產品管理的期望。AMPHENOL 的業務將安全和環境保護作為首要任務，并根據ISO 14001和OHSAS 18001等公認標準管理這些計劃。但是，認證和法律合規性還不夠。AMPHENOL不僅僅遵守法規就能創造長期價值。

詳情了解AMPHENOL可點擊：http://m.lunliu2.cn/article/1321.html

零件號	產品詳情

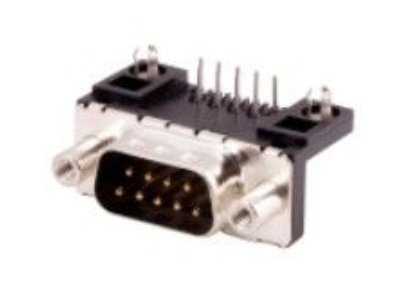

LD09P13A4GV00LF	D-Subminiature Economy Range, Input Output Connectors, Signal 9 way Pin Right Angle, Solder Europe standard, 50 cycles, Harpoons + Female Screw UNC 4 - 40 + Elec cont., 1.6 mm PCB thickness
LD09P13A4GX00LF	D-Subminiature Economy Range, Input Output Connectors, Signal 9 way Pin Right Angle, Solder Europe standard, 50 cycles, Harpoons + Threaded Insert UNC 4 - 40 + Elec cont., 1.6 mm PCB thickness
LD09P24A4GV00LF	D-Subminiature Economy Range, Input Output Connectors, Signal 9 way Pin Straight, Solder, 50 cycles, Harpoons + Female Screw UNC 4 - 40 + Elec cont., 1.6 mm PCB thickness
LD09P24A4GX00LF	D-Subminiature Economy Range, Input Output Connectors, Signal 9 way Pin Straight, Solder, 50 cycles, Harpoons + Threaded Insert UNC 4 - 40 + Elec cont., 1.6 mm PCB thickness
LD09P33E4GV00LF	D-Subminiature Economy Range, Input Output Connectors, Signal 9 way Pin Right Angle, Solder US standard, 50 cycles, Harpoons + Female Screw UNC 4 - 40 + Elec cont., 1.6 mm PCB thickness
LD09P33E4GX00LF	D-Subminiature Economy Range, Input Output Connectors, Signal 9 way Pin Right Angle, Solder US standard, 50 cycles, Harpoons + Threaded Insert UNC 4 - 40 + Elec cont., 1.6 mm PCB thickness
LD09S13A4GV00LF	D-Subminiature Economy Range, Input Output Connectors, Signal 9 way Socket Right Angle, Solder Europe standard, 50 cycles, Harpoons + Female Screw UNC 4 - 40 + Elec cont., 1.6 mm PCB thickness
LD09S13A4GX00LF	D-Subminiature Economy Range, Input Output Connectors, Signal 9 way Socket Right Angle, Solder Europe standard, 50 cycles, Harpoons + Threaded Insert UNC 4 - 40 + Elec cont., 1.6 mm PCB thickness
LD09S24A4GV00LF	D-Subminiature Economy Range, Input Output Connectors, Signal 9 way Socket Straight, Solder, 50 cycles, Harpoons + Female Screw UNC 4 - 40 + Elec cont., 1.6 mm PCB thickness
LD09S24A4GX00LF	D-Subminiature Economy Range, Input Output Connectors, Signal 9 way Socket Straight, Solder, 50 cycles, Harpoons + Threaded Insert UNC 4 - 40 + Elec cont., 1.6 mm PCB thickness
LD09S33E4GV00LF	D-Subminiature Economy Range, Input Output Connectors, Signal 9 way Socket Right Angle, Solder US standard, 50 cycles, Harpoons + Female Screw UNC 4 - 40 + Elec cont., 1.6 mm PCB thickness
LD09S33E4GX00LF	D-Subminiature Economy Range, Input Output Connectors, Signal 9 way Socket Right Angle, Solder US standard, 50 cycles, Harpoons + Threaded Insert UNC 4 - 40 + Elec cont., 1.6 mm PCB thickness
LD15P24A4GV00LF	D-Subminiature Economy Range, Input Output Connectors, Signal 15 way Pin Straight, Solder, 50 cycles, Harpoons + Female Screw UNC 4 - 40 + Elec cont., 1.6 mm PCB thickness
LD15S24A4GV00LF	D-Subminiature Economy Range, Input Output Connectors, Signal 15 way Socket Straight, Solder, 50 cycles, Harpoons + Female Screw UNC 4 - 40 + Elec cont., 1.6 mm PCB thickness
LD25P24A4GV00LF	D-Subminiature Economy Range, Input Output Connectors, Signal 25 way Pin Straight, Solder, 50 cycles, Harpoons + Female Screw UNC 4 - 40 + Elec cont., 1.6 mm PCB thickness
LD25S24A4GV00LF	D-Subminiature Economy Range, Input Output Connectors, Signal 25 way Socket Straight, Solder, 50 cycles, Harpoons + Female Screw UNC 4 - 40 + Elec cont., 1.6 mm PCB thickness
LD15P13A4GV00LF	D-Subminiature Economy Range, Input Output Connectors, Signal 15 way Pin Right Angle, Solder Europe standard, 50 cycles, Harpoons + Female Screw UNC 4 - 40 + Elec cont., 1.6 mm PCB thickness
LD15P13A4GX00LF	D-Subminiature Economy Range, Input Output Connectors, Signal 15 way Pin Right Angle, Solder Europe standard, 50 cycles, Harpoons + Threaded Insert UNC 4 - 40 + Elec cont., 1.6 mm PCB thickness
LD15P24A4GX00LF	D-Subminiature Economy Range, Input Output Connectors, Signal 15 way Pin Straight, Solder, 50 cycles, Harpoons + Threaded Insert UNC 4 - 40 + Elec cont., 1.6 mm PCB thickness
LD15P33E4GV00LF	D-Subminiature Economy Range, Input Output Connectors, Signal 15 way Pin Right Angle, Solder US standard, 50 cycles, Harpoons + Female Screw UNC 4 - 40 + Elec cont., 1.6 mm PCB thickness
