?Mi-Wave可編程旋轉葉片衰減器
發(fā)布時間：2023-02-20 16:34:48 瀏覽：875
旋轉葉片微波衰減器是種商用型直讀旋轉葉片衰減器，主要用于毫米波通信檢測設備。旋轉葉片微波衰減器有個刻度表，可以直接標示衰減值。

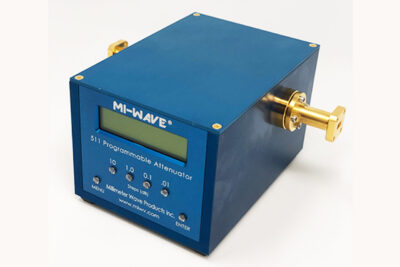

Mi-Wave的511系列精密可編程旋轉葉片衰減器可在整個波導頻率段7.0至220GHz。衰減控制能夠通過前面板手動實施，也能夠利用標準化的IEEE-488或USB接口遠距離實施。
Mi-Wave是商用型和軍工用毫米波產品全球領航者，可以提供毫米波器件和模塊解決方案。產品線涵蓋：放大器、混頻器、衰減器、濾波器、開關、T/R、天線、反射鏡等，所包含頻率高達320GHz.
深圳市立維創(chuàng)展科技有限公司授權代理銷售Mi-Wave毫米波產品，歡迎咨詢。
詳情了解Mi-Wave請點擊：http://m.lunliu2.cn/brand/52.html
Model | Power Type | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Insertion Loss (dB) typical | Attenuation Range (dB) | Resolution (dB) | Programmable GPIB Address | Power Handling (Watts) | RF Ports |
511(34)/595ND | Low Power | 22 | 33 | 0.5 | 0-70 | 0.01 | up to 30 | 0.3 | WR-34 Waveguide with UG-595/U Flanges |
511A-599ND | High Power | 26.5 | 40 | 0.5 | 0-70 | 0.01 | up to 30 | 10 | WR-28 Waveguide, UG-599/U Flange |
511B/383ND | High Power | 33 | 50 | 0.7 | 0-70 | 0.01 | up to 30 | 7 | WR-22 Waveguide, UG-383/U Flange |
511D/387ND | Low Power | 110 | 170 | 3.5 | 0-60 | 0.01 | up to 30 | 0.1 | WR-6 Waveguide, UG-387/U-M Flange |
511E/387ND | High Power | 60 | 90 | 1.8 | 0-65 | 0.01 | up to 30 | 2 | WR-12 Waveguide, UG-387/U-M Flange |
511F/387ND | Low Power | 90 | 140 | 3.4 | 0-60 | 0.01 | up to 30 | 0.1 | WR-8 Waveguide, UG-387/U-M Flange |
511G/387ND | Low Power | 140 | 220 | 3.8 | 0-50 | 0.01 | up to 30 | 0.1 | WR-05 Waveguide, UG-387/U-M Flange |
511H/387ND | Low Power | 170 | 260 | 6 | 0-40 | 0.01 | up to 30 | 0.1 | WR-04 Waveguide with UG-387/U-M Flange |
511J/387ND | Low Power | 220 | 325 | 7 | 0-40 | 0.01 | up to 30 | 0.05 | WR-03 Waveguide, UG-387/U Flange |
511K/595ND | Low Power | 18 | 26 | 0.5 | 0-70 | 0.01 | up to 30 | 0.3 | WR-42 Waveguide with UG-595/U Flanges |
511Ku/419ND | Low Power | 12.4 | 18 | 0.5 | 0-70 | 0.01 | up to 30 | 0.3 | WR-62 Waveguide, UG-419/U Flange |
511U/383ND | High Power | 40 | 60 | 1 | 0-70 | 0.01 | up to 30 | 5 | WR-19 Waveguide, UG-383/U-M Flange |
511V/385ND | High Power | 50 | 75 | 1.2 | 0-70 | 0.01 | up to 30 | 5 | WR-15 Waveguide, UG-385/U Flange |
511W/387ND | High Power | 75 | 110 | 3.3 | 0-65 | 0.01 | up to 30 | 2 | WR-10 Waveguide, UG-387/U-M Flange |
511X/39ND | Low Power | 8.2 | 12.4 | 0.5 | 0-70 | 0.01 | up to 30 | 0.3 | WR-90 Waveguide, UG-39/U Flange |
