?CINCON機箱安裝/DIN 導軌 20-750W
發布時間：2023-01-05 16:42:45 瀏覽：585

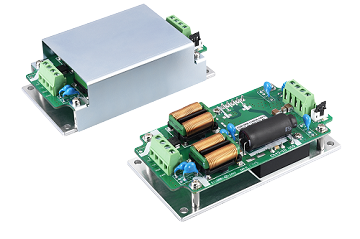

CINCON提供20W-750W、機箱安裝和DIN導軌DC-DC轉換器，具備集成化熱管散熱器以增強熱性能。CINCON機箱安裝/DIN導軌特性包含寬輸入范圍、輸入過電壓保護、穩壓電路輸出和連續過流保護。
特征
效率高達88%
穩固工作頻率
穩壓電路輸出
負邏輯遠程控制開/關
低空載功能損耗
全方面保障（OTP/OCP/OVP/UVLO）
3000VacI/O隔離
直流模塊的UL62368-1第二（增強絕緣性）認證
安全滿足IEC/EN/UL62368-1
底盤組裝，底板制冷
低浪涌電壓
輸入反接保護
EN50155 ClassS3/Class C2 CriteriaA無外部電容
輸出顯示燈
深圳市立維創展科技是CINCON電源模塊的代理經銷商，提供CINCON電源模塊的DC-DC轉換器、AC-DC電源、LED電源等，產品原裝進口，質量保障，極具價格優勢，歡迎咨詢
詳情了解CINCON電源請點擊：http://m.lunliu2.cn/article/2177.html
16:1 Input Range
Model | Power | Input Voltage | Output Voltage | Features | Dimensions (Inch) |
EC7BW18-ECRT/EDRT | 20W | 10~160V | 12V, 15V, 5V, ±12V, ±15V, ±24V | EN50155/ EN50121-3-2/ EN45545-2 Compliant
Low Inrush Current
Input Reverse Polarity Protection
EN50155 Class S3/ Class C2 Criteria A Without External Capacitor | 4.45x2.33x0.85
(ECRT)
4.45x2.33x1.43
(EDRT) |
12:1 Input Range
Model | Power | Input Voltage | Output Voltage | Features | Dimensions (Inch) |
CQB50W12-72SXX-CMFC(D) | 50W | 14~160V | 12V, 24V, 48V, 5V | Screw Terminal
Build in filter
Baseplate Cooled
EN45545-2
EN50155 Compliant | 4.60x2.40x1.26
(CMFC)
4.60x2.49x1.35
(CMFD) |
8:1 Input Range
Model | Power | Input Voltage | Output Voltage | Features | Dimensions (Inch) |
CQB50W8-36SXX-CMFC(D) | 50W | 9.5~75V | 12V, 15V, 24V, 28V, 48V | Screw Terminal
Build in filter
Baseplate Cooled
EN45545-2
EN50155 Compliant | 4.60x2.40x1.46
(CMFC)
4.60x2.49x1.46
(CMFD) |
CQB75W8-36SXX-CMFC(D) | 75W | 9.5~75V | 12V, 15V, 24V, 28V, 48V | Screw Terminal
Build in filter
Baseplate Cooled
EN45545-2
EN50155 Compliant | 4.60x2.40x1.46
(CMFC)
4.60x2.49x1.46
(CMFD) |
4:1 Input Range
Model | Power | Input Voltage | Output Voltage | Dimensions (Inch) |
CHB/CHE50-100W-CM/DIN | 100W, 50W, 75W | 18~75V, 9~36V | 12V, 15V, 24V, 28V, 3.3V, 48V, 5V | 4.61x2.54x1.03 |
CQB/CQE50-150W-CM/DIN | 100W, 150W, 50W, 75W | 18~75V, 43~160V, 66~160V, 9~36V | 12V, 15V, 24V, 28V, 3.3V, 48V, 5V | 4.41x1.57x1.98 |
CQB100W-110SXX-CMFC(D) | 100W | 43~160V | 5V, 12V, 15V, 24V, 28V, 48V | 4.60x2.40x1.26
(CMFC)
4.60x2.49x1.35
(CMFD) |
CQB150W-110SXX-CMFC(D) | 150W | 43~160V | 3.3V, 5V, 12V, 15V, 24V, 28V, 48V | 4.60x2.40x1.26
(CMFC)
4.60x2.49x1.35
(CMFD) |
CHB200W-110SXX-CMFC(D) | 200W | 43~160V | 5V, 12V, 24V, 28V, 48V | 6.50x3.00x1.52
(CMFC)
6.50x3.09x1.57
(CMFD) |
CHB300W-110SXX-CMFC(D) | 300W | 43~160V | 3.3V, 5V, 12V, 24V, 28V, 48V | 6.50x3.00x1.52
(CMFC)
6.50x3.09x1.57
(CMFD) |
CFB600W-110SXX CMFD | 600W | 43~160VDC | 12V, 24V, 28V, 48V | 9.45x4.33x1.65 |
2:1 Input Range
Model | Power | Input Voltage | Output Voltage | Features | Dimensions (Inch) |
CQB75-300S-CMFC(D) | 75W | 180~450V | 3.3V, 5V, 12V, 15V, 24V, 48V | Screw Terminal
Build in filter
EN45545-2
Baseplate Cooled | 4.60x2.40x1.24
(CMFC)
4.60x2.49x1.35
(CMFD) |
CQB150-300SXX CMFC(D) | 150W | 180~425V | 5V, 12V, 15V, 24V, 28V, 48V | Screw Terminal
Build in filter
EN45545-2
Baseplate Cooled | 4.60x2.40x1.26
(CMFC)
4.60x2.49x1.35
(CMFD) |
CHB300-300SXX CMFC(D) | 300W | 180~425V | 12V, 24V, 28V, 48V, 5V | Screw Terminal
Build in filter
EN45545-2
Baseplate Cooled | 6.50x3.00x1.52
(CMFC)
6.50x3.09x1.57
(CMFD) |
CFB750-300SXX-CMFD | 750W | 200~425V | 12V, 15V, 24V, 28V, 36V, 48V | Screw Terminal
Build in filter
EN45545-2
Baseplate Cooled | 9.45x4.33x1.65 |
