CINCON底盤安裝/ DIN導軌30-600W
發布時間：2021-01-11 17:00:27 瀏覽：1691

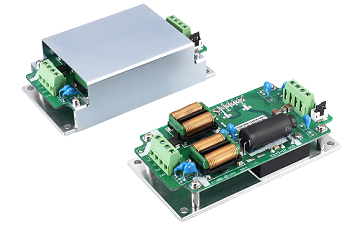

CINCON公司提供30W-600 W底盤安裝和DIN導軌DC-DC轉換器，能夠集成散熱器可改善熱性能。CINCON底盤安裝/DIN導軌30-600W的特點包括寬輸入范圍、輸入過電壓保護、穩定輸出和連續短路保護。
深圳市立維創展科技有限公司是CINCON電源模塊的分銷商，提供CINCON電源模塊直流電、交直流電源、LED電源等，原產品進口，質量保證，價格優勢，歡迎咨詢。
12:1 Input Range
Model | Power | Input Voltage | Output Voltage | Features | Dimensions (Inch) |
CQB50W12-72SXX-CMFC(D) | 30-50W | 14 -160V | 5V, 12V, 24V, 48V | Screw Terminal
Build in filter
Baseplate Cooled
EN45545-2
EN50155 Compliant | 4.60x2.40x1.26
(CMFC)
4.60x2.49x1.35
(CMFD) |
4:1 Input Range
Model | Power | Input Voltage | Output Voltage | Features | Dimensions (Inch) |
CHB/CHE50-100W-CM/DIN | 100W, 50W, 75W | 18~75V, 9~36V | 12V, 15V, 24V, 28V, 3.3V, 48V, 5V | Screw Terminal | 4.61x2.54x1.03 |
CQB/CQE50-150W-CM/DIN | 100W, 150W, 50W, 75W | 18~75V, 43~160V, 66~160V, 9~36V | 12V, 15V, 24V, 28V, 3.3V, 48V, 5V | Screw Terminal | 4.41x1.57x1.98 |
CQB100W-110SXX-CMFC(D) | 100W | 43-160V | 5V, 12V, 15V, 24V, 28V, 48V | Screw Terminal
Build in filter
Baseplate Cooled
EN45545-2
EN50155 Compliant | 4.60x2.40x1.26
(CMFC)
4.60x2.49x1.35
(CMFD) |
CQB150W-110SXX-CMFC(D) | 150W | 43~160V | 3.3V, 5V, 12V, 15V, 24V, 28V, 48V | Screw Terminal
Build in filter
Baseplate Cooled
EN45545-2
EN50155 Compliant | 4.60x2.40x1.26
(CMFC)
4.60x2.49x1.35
(CMFD) |
CHB200W-110SXX-CMFC(D) | 200W | 43-160V | 5V, 12V, 24V, 28V, 48V | Screw Terminal
Build in filter
Baseplate Cooled
EN45545-2
EN50155 Compliant | 6.50x3.00x1.52
(CMFC)
6.50x3.09x1.57
(CMFD) |
CHB300W-110SXX-CMFC(D) | 300W | 43-160V | 3.3V, 5V, 12V, 24V, 28V, 48V | Screw Terminal
Build in filter
Baseplate Cooled
EN45545-2
EN50155 Compliant | 6.50x3.00x1.52
(CMFC)
6.50x3.09x1.57
(CMFD) |
CFB600W-110SXX CMFD | 600W | 43-160V | 12V, 24V, 28V, 48V | Screw Terminal
Build in filter
Baseplate Cooled
EN45545-2
EN50155 Compliant | 9.45x4.33x1.65 |
2:1 Input Range
Model | Power | Input Voltage | Output Voltage | Features | Dimensions (Inch) |
CQB150-300SXX CMFC(D) | 150W | 180~425V | 5V, 12V, 15V, 24V, 28V, 48V | Screw Terminal
Build in filter
EN45545-2
Baseplate Cooled | 4.60x2.40x1.26
(CMFC)
4.60x2.49x1.35
(CMFD) |
CHB300-300SXX CMFC(D) | 300W | 180~425V | 5V, 12V, 24V, 28V, 48V | Screw Terminal
Build in filter
EN45545-2
Baseplate Cooled | 6.50x3.00x1.52
(CMFC)
6.50x3.09x1.57
(CMFD) |
