NOVA微波SMA同軸循環器
發布時間：2020-09-18 15:02:42 瀏覽：1713
Nova Microwave提供了一系列針對通信應用，軍事應用，蜂窩和無線市場而設計的具有不同封裝尺寸和頻段的NOVA微波SMA同軸循環器，可靠性，價格和制造在設計階段得到優化。NOVA微波SMA同軸循環器被設計為具有一些RFI和高質量材料的磁屏蔽，以確保在整個溫度范圍內的最佳性能。NOVA微波SMA同軸循環器為了確保磁場穩定，在整個溫度范圍內不波動，所有NOVA微波SMA同軸循環器的溫度周期范圍為-50°C至+100°C，然后進行最終測試。標準SMA同軸循環器附帶SMA主連接器。
深圳市立維創展科技是NOVA的經銷商，主要提供NOVA的各種微帶線環形器與微帶線隔離器，產品原廠進口，極具價格優勢，歡迎咨詢。
FREQUENCY | MODEL | ISOLATION dB (Min.) | INS. LOSS dB (Max.) | VSWR | TEMP | FWD | REV | PACKAGE OUTLINE |
GHZ | (Max.) | ( oC ) | POWER (WATTS) |
0.380-0.470 | 0042CAS | 20 | 0.4 | 1.25 | 65 | 250 | 250 | QC |
0.400-0.500 | 0045CAS | 20 | 0.4 | 1.25 | 65 | 250 | 250 | QC |
0.500-0.600 | 0055CAS | 20 | 0.4 | 1.25 | 45 | 250 | 250 | RC |
0.600-0.750 | 0067CAS | 20 | 0.4 | 1.25 | 45 | 250 | 250 | SC |
0.700-0.830 | 0076CAS | 20 | 0.4 | 1.25 | 45 | 250 | 250 | TC |
0.790-0.960 | 0088CAS | 20 | 0.4 | 1.25 | 45 | 150 | 150 | UC |

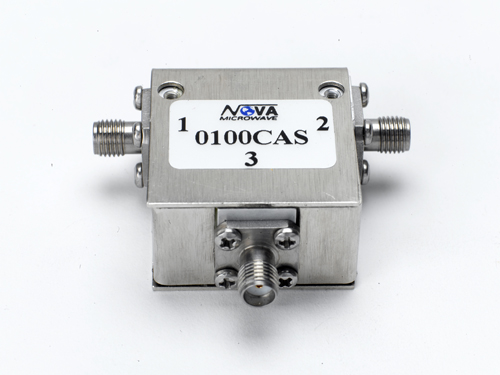

0.900-1.100 | 0100CAS | 20 | 0.4 | 1.25 | 45 | 150 | 150 | UC |
0.915-0.964 | 0094CAS | 23 | 0.35 | 1.2 | 45 | 150 | 150 | UC |
0.960-1.215 | 0109CAS | 20 | 0.4 | 1.25 | 45 | 150 | 150 | UC |
1.100-1.300 | 0120CAS | 20 | 0.35 | 1.25 | 45 | 150 | 150 | UC |
1.200-1.400 | 0130CAS | 20 | 0.35 | 1.25 | 45 | 150 | 150 | UC |
1.400-1.600 | 0150CAS | 20 | 0.35 | 1.25 | 45 | 150 | 150 | UC |
1.500-1.800 | 0165CAS | 20 | 0.35 | 1.25 | 45 | 150 | 150 | UC |
1.700-2.000 | 0185CAS | 20 | 0.35 | 1.25 | 45 | 150 | 150 | VC |
1.700-2.300 | 0200CES | 20 | 0.4 | 1.25 | 60 | 50 | 50 | YC |
1.800-2.100 | 0195CAS | 20 | 0.35 | 1.25 | 45 | 150 | 150 | VC |
1.930-1.990 | 0196CAS | 23 | 0.35 | 1.25 | 45 | 150 | 150 | VC |
11.100-13.700 | 1240CES | 20 | 0.4 | 1.25 | 45 | 25 | 25 | XC |
11.500-15.000 | 1325CES | 20 | 0.4 | 1.25 | 45 | 25 | 25 | XC |
11.700-12.200 | 1195CES | 23 | 0.35 | 1.2 | 45 | 25 | 25 | XC |
12.700-13.200 | 1295CES | 23 | 0.35 | 1.2 | 45 | 25 | 25 | XC |
13.500-15.400 | 1445CES | 20 | 0.4 | 1.25 | 45 | 25 | 25 | XC |
14.000-14.500 | 1425CES | 23 | 0.35 | 1.16 | 45 | 25 | 25 | XC |
15.000-18.000 | 1650CES | 20 | 0.5 | 1.25 | 45 | 20 | 20 | XC |
17.000-20.000 | 1850CES | 20 | 0.5 | 1.3 | 45 | 20 | 20 | XC |
2.000-2.300 | 0215CAS | 20 | 0.35 | 1.25 | 45 | 150 | 150 | VC |
2.100-2.400 | 0225CAS | 20 | 0.35 | 1.25 | 45 | 150 | 150 | VC |
2.300-2.700 | 0250CAS | 20 | 0.4 | 1.25 | 45 | 150 | 150 | VC |
2.400-2.500 | 0245CAS | 23 | 0.35 | 1.25 | 45 | 150 | 150 | VC |
2.500-2.900 | 0270CSS | 20 | 0.4 | 1.25 | 45 | 50 | 50 | VC |
2.700-3.100 | 0290CES | 20 | 0.4 | 1.25 | 45 | 50 | 50 | VC |
2.800-3.300 | 0305CES | 20 | 0.4 | 1.25 | 65 | 50 | 50 | WC |
21.200-23.600 | 2240CES | 20 | 0.5 | 1.3 | 45 | 20 | 20 | XC |
3.400-4.200 | 0380CES | 20 | 0.4 | 1.25 | 65 | 35 | 35 | WC |
3.600-4.300 | 0395CES | 20 | 0.4 | 1.25 | 45 | 35 | 35 | WC |
4.200-5.000 | 0460CES | 20 | 0.4 | 1.25 | 45 | 35 | 35 | WC |
4.600-5.400 | 0500CES | 20 | 0.4 | 1.25 | 45 | 35 | 35 | WC |
5.000-6.000 | 0550CES | 20 | 0.4 | 1.25 | 45 | 35 | 35 | WC |
5.400-5.900 | 0565CES | 23 | 0.35 | 1.2 | 45 | 35 | 35 | WC |
5.700-6.800 | 0625CES | 20 | 0.4 | 1.25 | 45 | 35 | 35 | WC |
5.800-6.500 | 0615CES | 23 | 0.35 | 1.2 | 45 | 35 | 35 | WC |
6.000-8.000 | 0700CES | 20 | 0.4 | 1.25 | 45 | 35 | 35 | WC |
6.400-7.200 | 0680CES | 23 | 0.35 | 1.2 | 45 | 35 | 35 | WC |
7.200-8.400 | 0780CES | 23 | 0.35 | 1.2 | 45 | 35 | 35 | WC |
8.000-11.000 | 0950CES | 20 | 0.4 | 1.25 | 45 | 25 | 25 | XC |
8.500-11.500 | 1000CES | 20 | 0.4 | 1.25 | 45 | 30 | 30 | XC |
9.000-9.700 | 0935CES | 23 | 0.35 | 1.2 | 45 | 25 | 25 | XC |
9.500-12.750 | 1112CES | 20 | 0.4 | 1.25 | 45 | 25 | 25 | XC |
9.700-11.700 | 1070CES | 23 | 0.35 | 1.2 | 45 | 30 | 30 | XC |
