NOVA表面貼裝循環器
發布時間：2020-09-01 16:09:00 瀏覽：1798

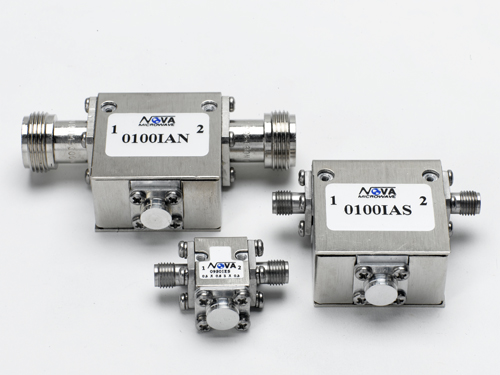

NOVA提供一系列表面貼裝環行器，其封裝尺寸和頻帶設計用于通信、軍事應用、蜂窩和無線市場。NOVA表面貼裝循環器在設計階段對可靠性、價格和制造進行了優化。表面貼裝循環器是由高質量的材料制成，以確保在整個溫度范圍內的最佳性能。NOVA表面貼裝循環器為了保證磁場穩定且不隨溫度波動，所有表面貼裝循環器的溫度循環在-50°C~+100°C之間。表面貼裝環行器與相位匹配，逆時針旋轉和所需的互調規格可按要求提供。NOVA表面貼裝循環器所列電氣規格均在工作溫度范圍內。
深圳市立維創展科技是NOVA的經銷商，主要提供NOVA的各種微帶線環形器與微帶線隔離器，產品原廠進口，極具價格優勢，歡迎咨詢。
頻率 | 模型 | 隔離度dB（最小值） | INS。損耗dB（最大） | 駐波比 | TEMP | 前輪驅動 | 倒轉 |
GHZ | （最大） | （ ? C） | 功率（瓦） |
0.450-0.470 | S0046CAD | 22 | 0.4 | 1.2 | 65 | 250 | 250 |
0.450-0.500 | S0048CAD | 20 | 0.5 | 1.25 | 65 | 250 | 250 |
0.470-0.512 | S0049CAD | 20 | 0.5 | 1.25 | 65 | 250 | 250 |
0.810-0.826 | S0082CAD | 22 | 0.3 | 1.2 | 65 | 150 | 150 |
0.810-0.915 | S0086CAD | 20 | 0.35 | 1.25 | 65 | 150 | 150 |
0.824-0.849 | S0084CAD | 22 | 0.3 | 1.2 | 65 | 150 | 150 |
0.860-0.904 | S0088CAD | 22 | 0.3 | 1.2 | 65 | 150 | 150 |
0.880-0.940 | S0091CAD | 22 | 0.3 | 1.2 | 65 | 150 | 150 |
0.890-0.960 | S0092CAD | 22 | 0.3 | 1.2 | 65 | 150 | 150 |
0.915-0.964 | S0094CAD | 22 | 0.3 | 1.2 | 65 | 150 | 150 |
0.980-1.020 | S0100CAD | 22 | 0.3 | 1.2 | 65 | 150 | 150 |
1.000-1.060 | S0103CAD | 20 | 0.3 | 1.25 | 65 | 150 | 150 |
1.000-1.100 | S0105CAD | 20 | 0.3 | 1.25 | 65 | 150 | 150 |
1.030-1.090 | S0106CAD | 22 | 0.3 | 1.25 | 65 | 150 | 150 |
1.250-1.350 | S0130CAD | 20 | 0.3 | 1.25 | 65 | 150 | 150 |
1.400-1.600 | S0150CAD | 20 | 0.4 | 1.25 | 65 | 150 | 150 |
1.429-1.453 | S0144CAD | 22 | 0.3 | 1.2 | 65 | 150 | 150 |
1.429-1.501 | S0147CAD | 22 | 0.35 | 1.2 | 65 | 150 | 150 |
1.477-1.501 | S0149CAD | 22 | 0.3 | 1.2 | 65 | 150 | 150 |
1.500-1.660 | S0158CAD | 20 | 0.35 | 1.25 | 65 | 150 | 150 |
1.710-1.785 | S0175CAD | 20 | 0.3 | 1.25 | 65 | 125 | 125 |
1.710-1.880 | S0179CAD | 20 | 0.35 | 1.25 | 65 | 125 | 125 |
1.805-1.880 | S0184CAD | 20 | 0.35 | 1.25 | 45 | 125 | 125 |
1.850-1.990 | S0192CAD | 20 | 0.35 | 1.25 | 45 | 125 | 125 |
1.930-1.990 | S0196CAD | 20 | 0.3 | 1.25 | 45 | 125 | 125 |
11.100-13.700 | S1240CED | 20 | 0.4 | 1.25 | 45 | 25 | 25 |
11.500-16.000 | S1375CED | 17 | 0.5 | 1.35 | 45 | 25 | 25 |
12.700-14.500 | S1360CED | 20 | 0.35 | 1.25 | 45 | 25 | 25 |
14.000-14.500 | S1425CED | 20 | 0.4 | 1.25 | 45 | 25 | 25 |
14.500-19.700 | S1710CET | 18 | 0.5 | 1.3 | 45 | 20 | 20 |
17.700-19.700 | S1870CET | 20 | 0.5 | 1.25 | 45 | 20 | 20 |
2.000-2.300 | S0215CAD | 20 | 0.5 | 1.25 | 45 | 125 | 125 |
2.000-2.400 | S0225CAD | 20 | 0.5 | 1.25 | 45 | 125 | 125 |
2.300-2.500 | S0240CAD | 20 | 0.4 | 1.25 | 45 | 125 | 125 |
2.300-2.700 | S0250CAD | 20 | 0.4 | 1.25 | 45 | 125 | 125 |
2.400-2.500 | S0245CAD | 20 | 0.35 | 1.25 | 45 | 125 | 125 |
2.500-2.900 | S0270CAD | 20 | 0.35 | 1.25 | 45 | 125 | 125 |
2.900-3.100 | S0300CAD | 20 | 0.4 | 1.25 | 45 | 125 | 125 |
3.300-3.600 | S0345CAD | 20 | 0.4 | 1.25 | 45 | 125 | 125 |
3.400-4.200 | S0380CED | 20 | 0.4 | 1.25 | 65 | 50 | 50 |
3.600-4.300 | S0395CED | 20 | 0.4 | 1.25 | 45 | 50 | 50 |
4.200-4.400 | S0430CED | 20 | 0.4 | 1.25 | 45 | 35 | 35 |
4.400-5.000 | S0470CED | 20 | 0.4 | 1.25 | 45 | 35 | 35 |
5.000-6.500 | S0575CED | 17 | 0.5 | 1.25 | 45 | 35 | 35 |
5.400-5.900 | S0565CED | 20 | 0.4 | 1.25 | 45 | 35 | 35 |
5.800-6.500 | S0615CED | 20 | 0.4 | 1.25 | 45 | 35 | 35 |
6.400-7.200 | S0680CED | 20 | 0.4 | 1.25 | 45 | 35 | 35 |
6.500-8.500 | S0750CED | 20 | 0.4 | 1.25 | 45 | 35 | 35 |
7.100-7.900 | S0760CED | 20 | 0.4 | 1.25 | 45 | 35 | 35 |
7.200-8.400 | S0780CED | 20 | 0.4 | 1.25 | 45 | 35 | 35 |
7.800-8.500 | S0815CED | 20 | 0.4 | 1.25 | 45 | 35 | 35 |
8.300-8.800 | S0855CED | 20 | 0.4 | 1.25 | 45 | 35 | 35 |
8.500-11.500 | S1000CED | 17 | 0.5 | 1.35 | 45 | 30 | 30 |
9.000-9.700 | S0935CED | 20 | 0.35 | 1.25 | 45 | 30 | 30 |
9.500-12.750 | S1112CED | 20 | 0.4 | 1.25 | 45 | 30 | 30 |
9.700-11.700 | S1070CED | 20 | 0.4 | 1.25 | 45 | 30 | 30 |
